3D LiDAR is a complex technology that enables unprecedented Spatial Intelligence. Many engineering choices are possible when building a new device.

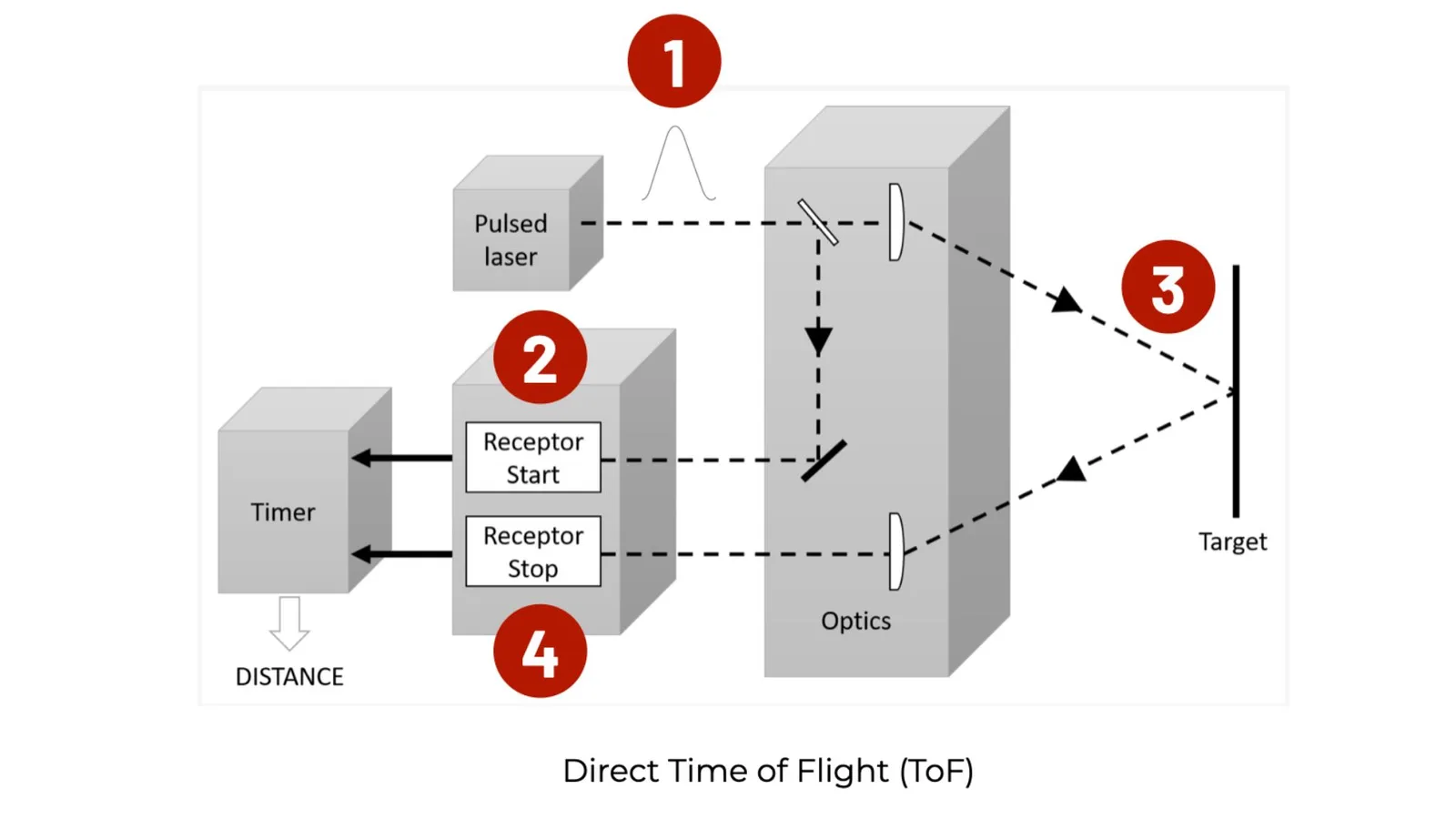

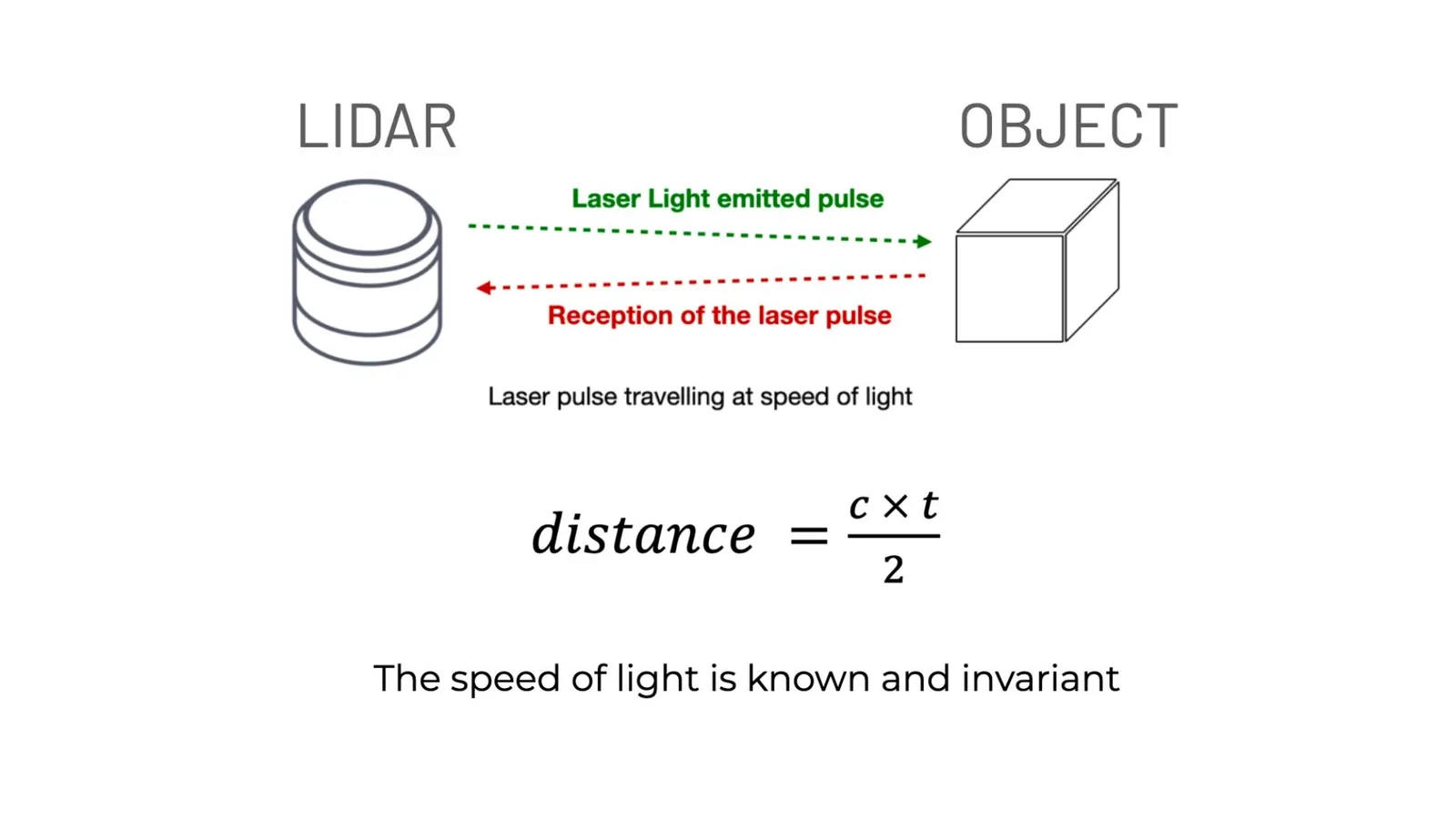

Simply put a LiDAR (Light Detection & Ranging) system times how long light takes to reflect off a target that is illuminated by its light source.
Because it generates its own light, it's called an Active Sensor.
It operates in a variety of environments and contexts, such as at night and in direct sunlight, in contrast to existing 2D-based perception technologies like cameras (a passive sensor).
Each LiDAR device performs four main functions:
The following sections dive deeper into the three first components.
Since the laser's discovery more than 60 years ago, extensive research has been done on it. Different kinds of lasers are used in various technological fields today.
These include liquid (dye) lasers, semiconductor lasers, gas lasers, solid-state lasers (also known as diode lasers) and fiber lasers.

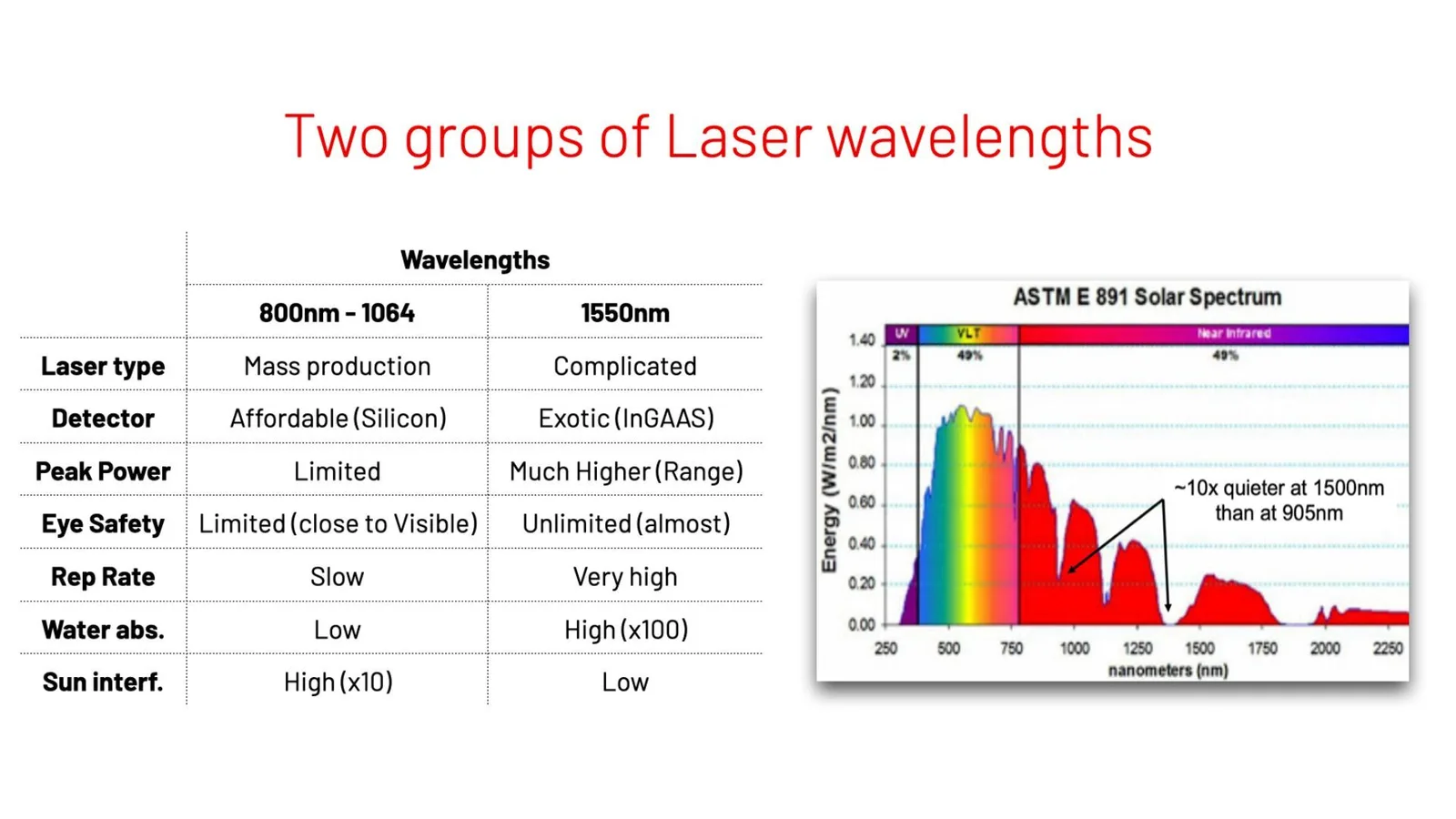

Each of these two techniques emits laser light in specific wavelengths (or regions of the spectra) and has pros and cons:
There are mainly two types of Laser Diodes:
In the 1550nm region, Fiber Lasers' LiDAR, such those used by Luminar, Aeye and Innovusion, also use a Diode (in some cases several of them) to "pump" energy into a long fiber, that highly amplifies the signal.
It's hard to predict how the market will evolve, because Fiber Laser LiDAR manufacturers are greatly improving the manufacturing techniques and reducing costs, while Diode-based LiDAR makers like Innoviz and Valeo are greatly enhancing their performance!

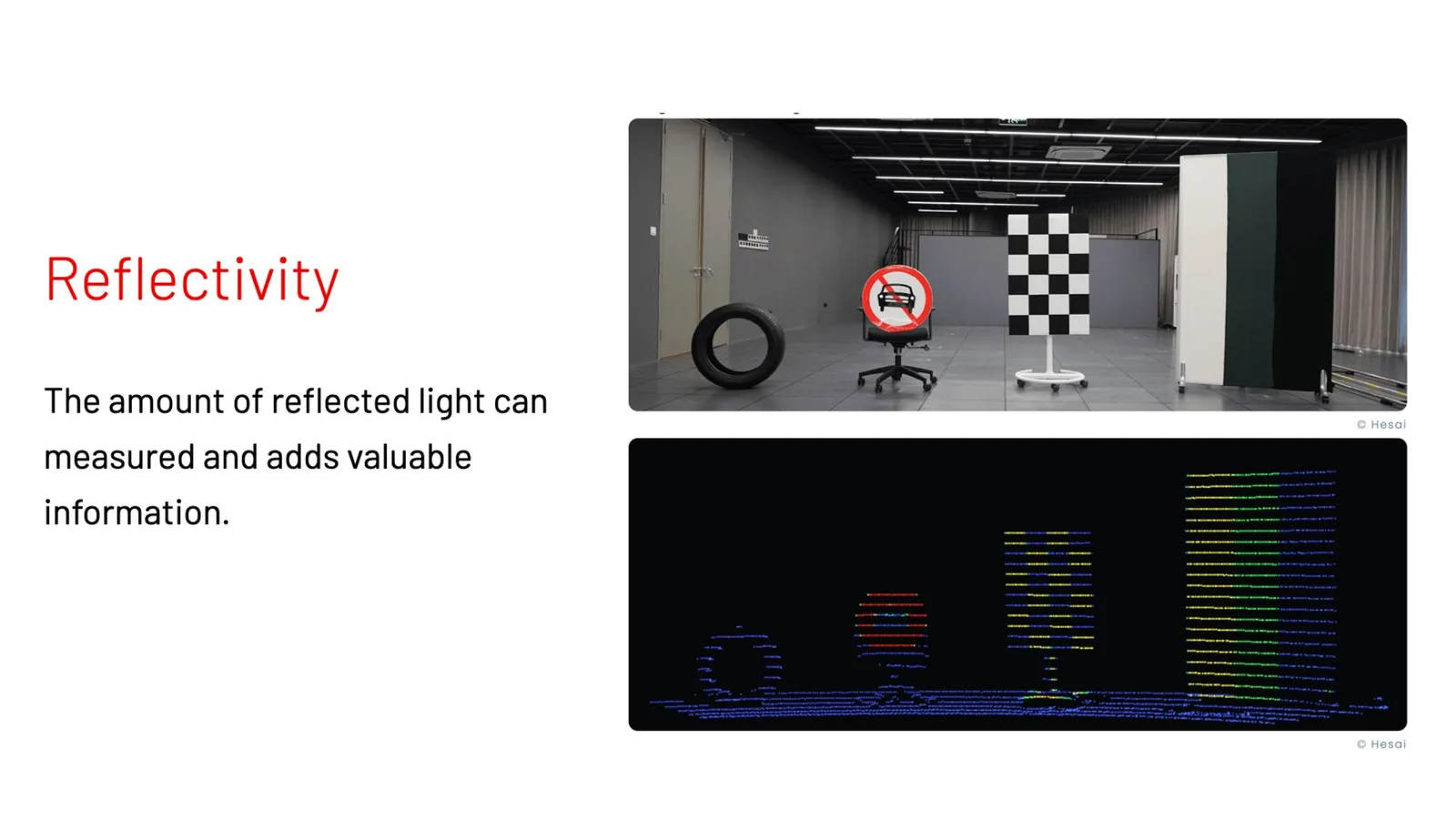

An important metric of any LiDAR, that is how many laser points per second it's capable of measuring, is directly related to the Laser source performance.

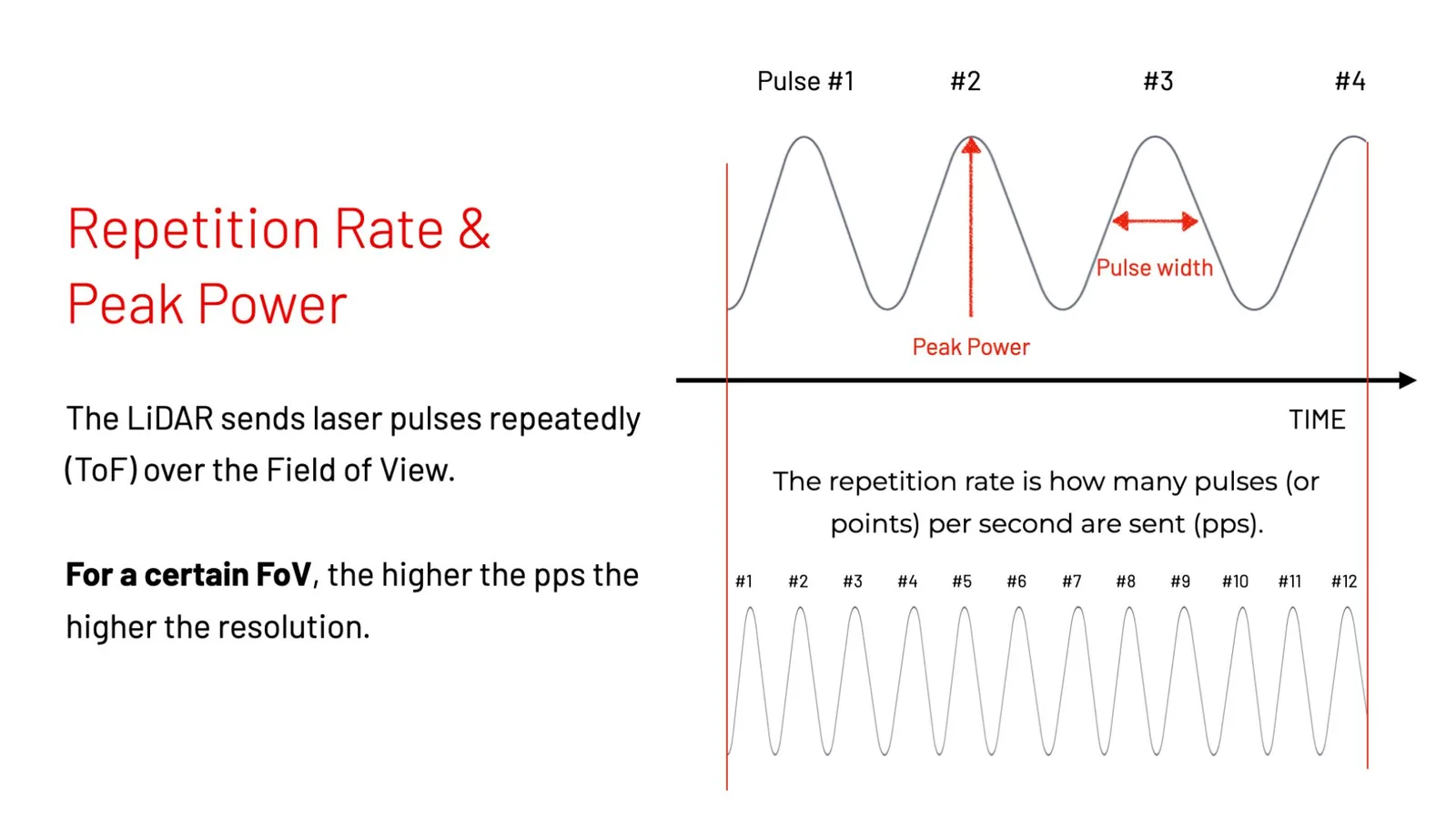

The Repetition Rate is a key performance indicator, measured in points per second. Traditional 2D LiDAR used in Cartography used to emit at some 20 to 50k points per second. The most advanced LiDARs today emit several millions point per second.
The Peak Power means how powerful each laser pulse is, which directly translates into detection range. The narrower the pulse duration or width the more efficient the LiDAR is for a given total energy budget, but also the better the accuracy.
A device that sends a Laser pulse (or even a train of consecutive laser pulses) and mesures the time it takes to get back it's not a LiDAR, it's called a Range Finder and you can easily find them at affordable prices.
While you can wait 1 or 3 seconds for your range finder to provide distance measurements of a single spot in space, for 3D LiDAR to be useful it must provide:

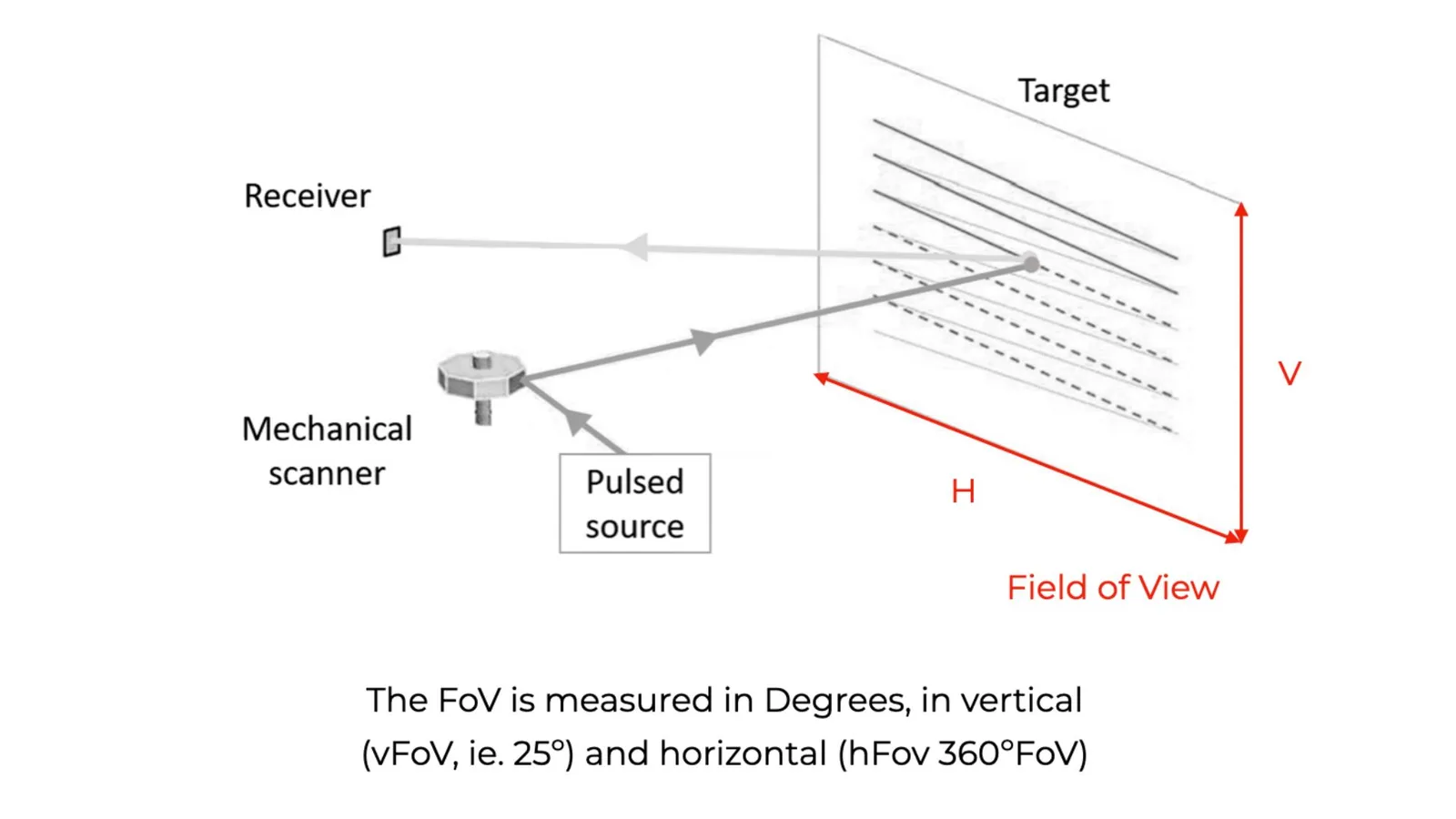

There are different techniques to illuminate the target Field of View.
One method is to progressively illuminate each section of the field of view. In order to scan a different section at different times, the laser beam must be steered using a variety of mechanisms (spinning mirrors, spinning motors, micro-mirrors, etc.).
There are by the way other techniques to steer the laser light without moving parts, like Light Control Metasurface by Lumotive, but these are beyond the scope of this article.

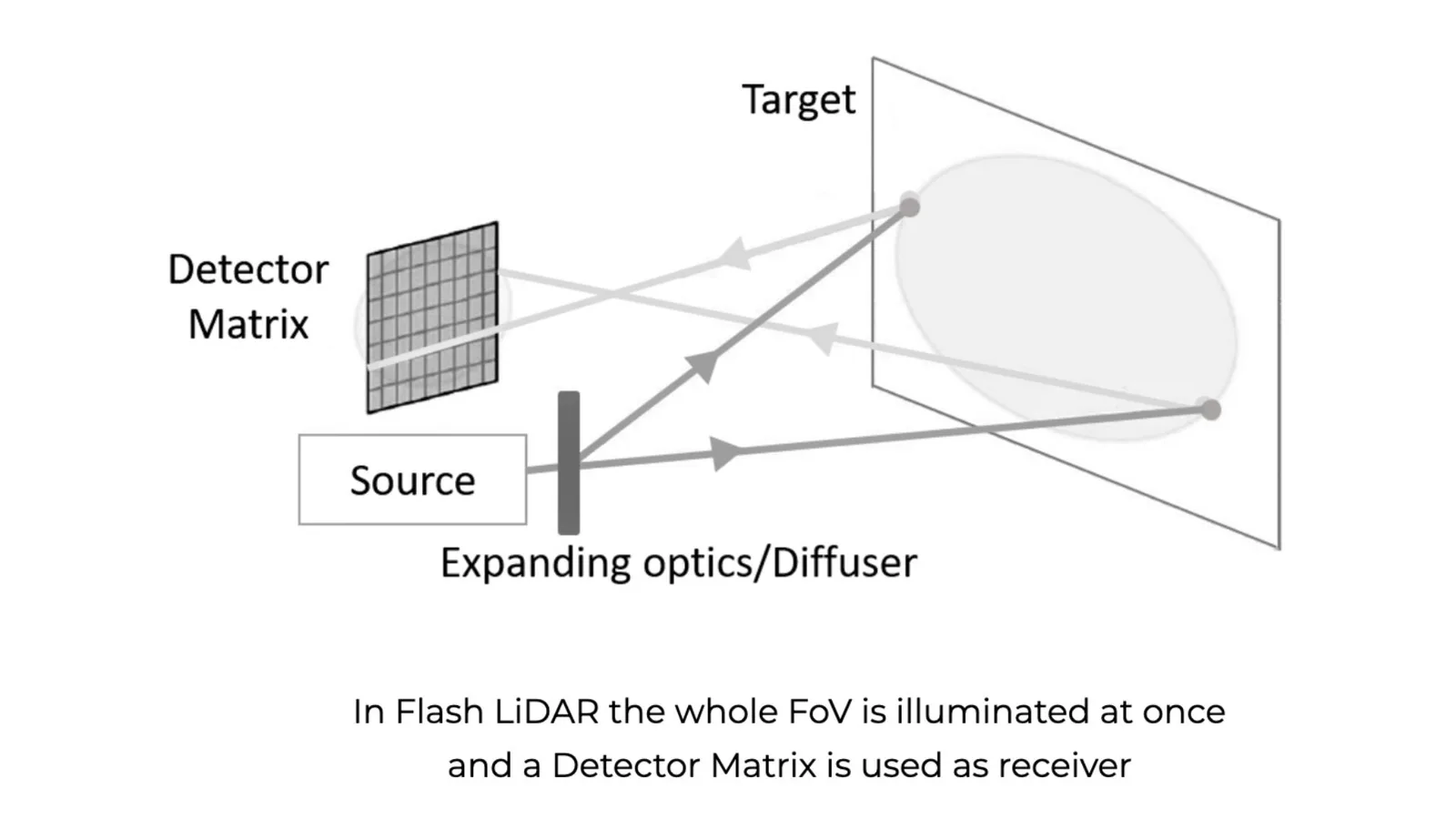

A different method is to diffuse the laser light so that a single pulse simultaneously illuminates the entire field of view (FoV). A matrix of sensors on the detector side will pick up a particular area of the space.
The vast majority of LiDAR manufacturers employ a repetitive scanning pattern, which means that each Frame (3D Image) generated by the device will be identical to the previous one (if the sensor is not moving and there are no moving objects in the Field-of-View). This is because each laser pulse will hit the same exact location frame after frame.
Companies like Livox / DJI employ a non-repetitive pattern where the firing angle of each laser beam varies over time. Therefore, even a static lidar in a static scene will eventually produce a much denser image.
Why is this useful? Understanding the "background" (the static portion of the scene) is crucial in many applications to quickly identify moving objects (by definition not part of the background).
Therefore, a Non-Repetitive LiDAR with a much lower repetition rate -and price!- (for example, 250k points per second as opposed to 2 million points per second) can be much more appropriately used in a variety of circumstances and contexts.
The methods to detect the light greatly depends on the Laser source being employed: wavelengths below 1064nm can be detected using Silicon-based sensors, which means that they can be affordable and easy to manufacture.
Fiber Lasers at 1550nm require other materials like InGaaS, that are harder to produce at scale.
Another aspect to take into account is the detection method.

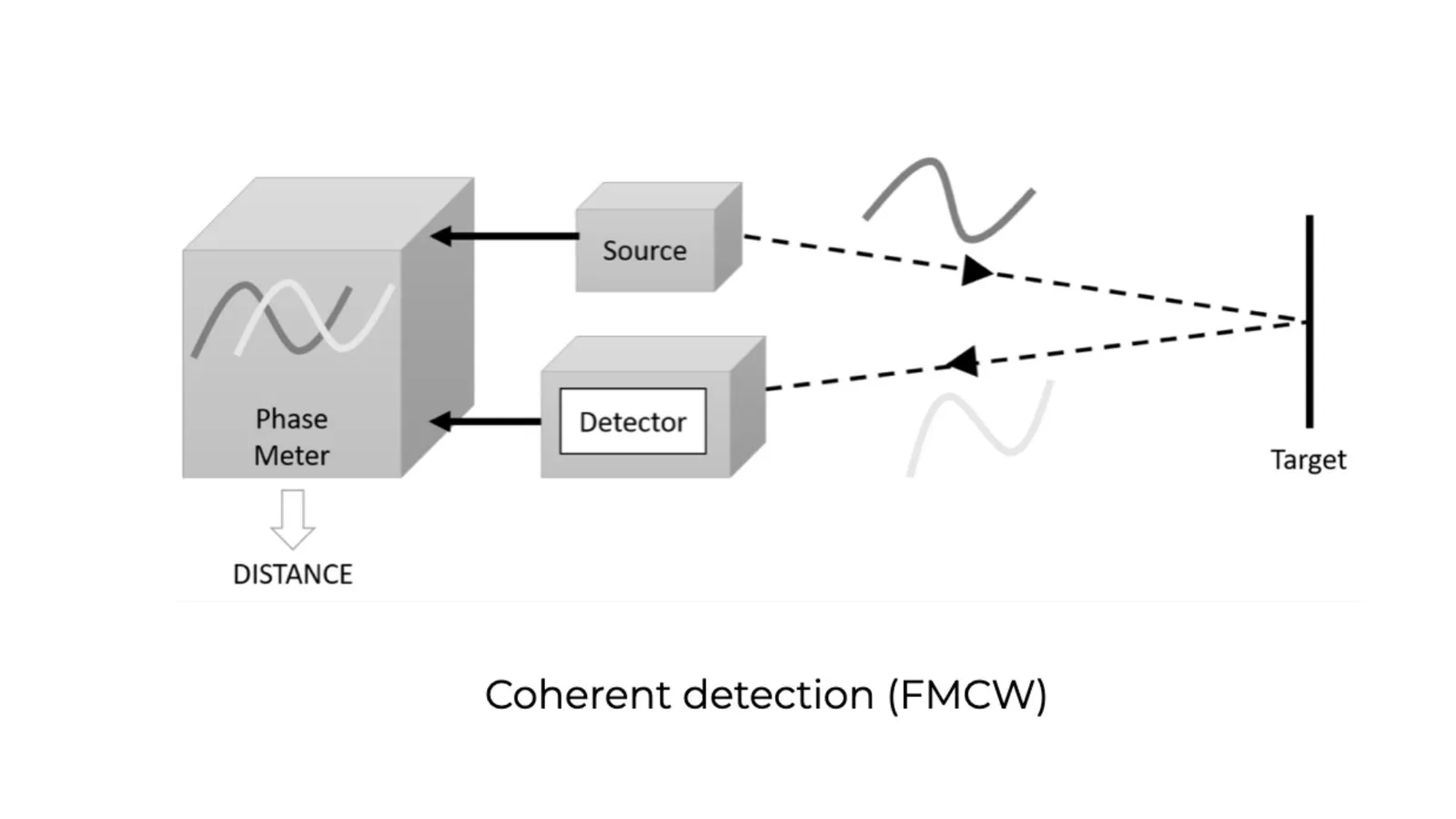

However, a different approach, popularized by companies like Aeva, is quickly becoming mature: FMCW LiDAR (or Frequency Modulated Continuous Wave LiDAR), that uses Coherent detection.
In simple terms, instead of sending pulses over time, FMCW lidar sends out a constant stream of laser light (continuous wave) and modifies its frequency at regular intervals (frequency modulated). This allows to both determine the location of objects and precisely measure their axial relative speed using the Doppler effect.
This technique has many advantages, including immunity to sunlight and other device interference. They typically operate in the 1550nm spectrum, with the advantages related to eye safety that we mentioned for Fiber Lasers.
The power consumption can be far lower (up to 1000 times), which translates into higher ranges and resolution for the same energy.
3D LiDAR is a complex technology that enables unprecedented Spatial Intelligence.
The Laser Source, the Scanning Method, the Detector, and the target Field-of-View are just a few of the engineering choices that can be made when developing a new device.
All of these factors can be combined, and some combinations perform significantly better in particular circumstances and contexts.

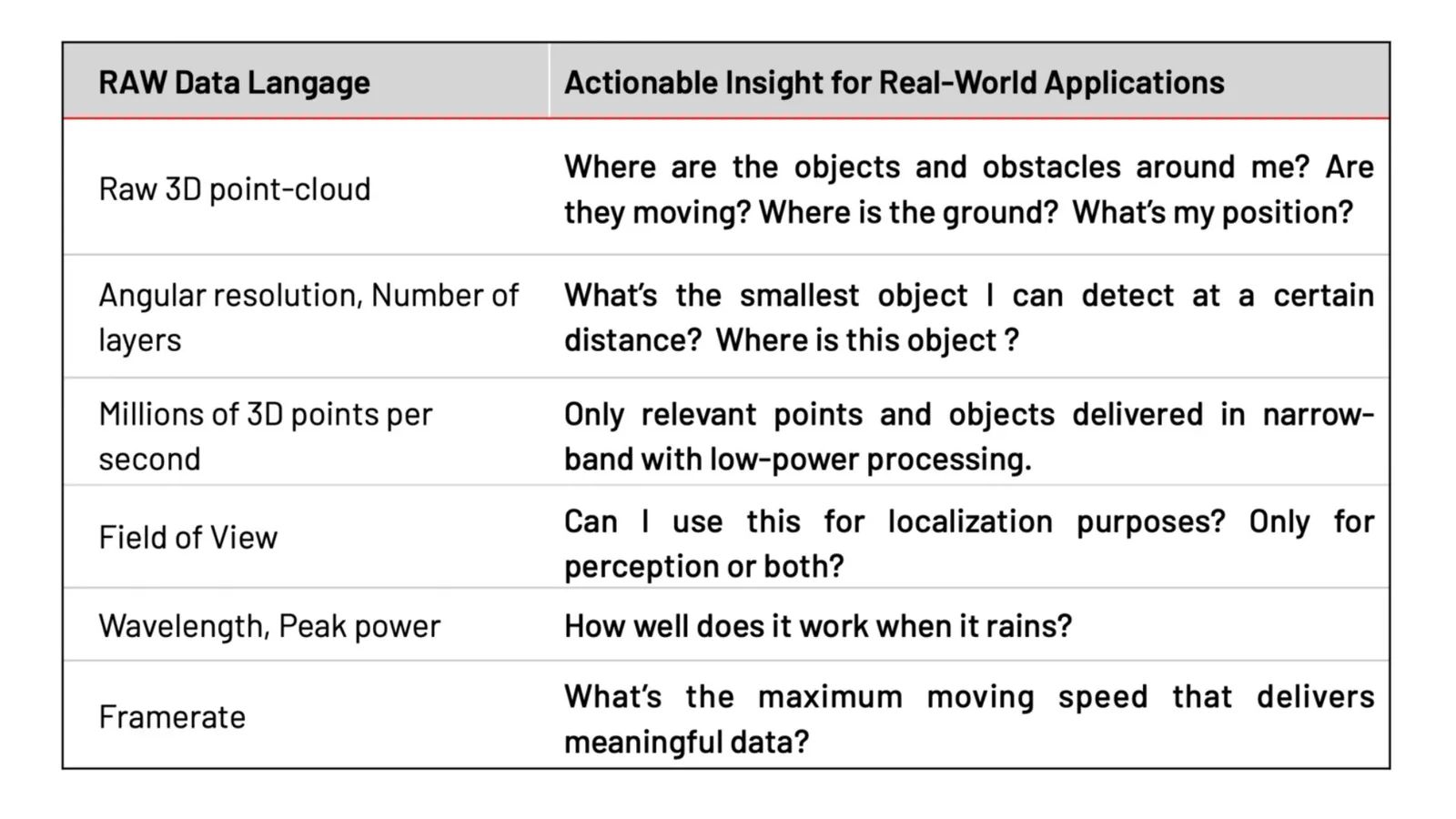

Moreover, the output of all these complex LiDAR devices is only a point-cloud (that is the RAW laser data points), whereas what is required in order to leverage the value of 3D Data is ready-to-use actionable insight and information.
In addition, choosing which sensors to use, as well as effectively integrating them, let alone combining data from various manufacturers, is challenging due to the lack of any standard and the use of proprietary protocols by each manufacturer.
