How LiDAR Is Changing Construction Site Safety

Frequently Asked Questions

• How does LiDAR detect hazards on construction sites differently from cameras?

  LiDAR measures the precise 3D position and volume of every object in its field of view, so it can calculate whether a swinging crane load, not just the crane arm itself, is on a collision course with a worker. A camera sees a 2D image and cannot reliably compute that spatial relationship in real time. LiDAR also works in direct sunlight, dust, and darkness, which are routine conditions on active construction sites where camera-based systems commonly fail. This infrastructure-based approach is central to how Outsight applies LiDAR at industrial scale: its SHIFT platform processes 3D point clouds with sub-50ms end-to-end latency, tracking the shape and motion of people, vehicles, and equipment simultaneously, without capturing any biometric data.

• Can LiDAR safety systems on cranes avoid false alarms from uneven terrain?

  Yes. Because LiDAR builds a full 3D model of the scene, the system distinguishes between a mound of earth, a parked vehicle, and a standing worker based on shape, height, and motion. Rough or sloped ground does not register as an intrusion into a safety zone, which is a common failure mode for 2D proximity sensors and radar-based systems that cannot resolve vertical geometry from ground-level returns. This is the same principle behind infrastructure-based Physical AI approaches like Outsight's Motional Digital Twin, where LiDAR-native 3D perception classifies objects by geometry and movement rather than simple proximity, allowing safety zones to be defined in three dimensions and remain stable regardless of ground conditions beneath them.

• What is the difference between 2D and 3D LiDAR for construction site mapping?

  A 2D LiDAR scanner emits a single plane of laser pulses, capturing a cross-sectional slice of the environment. A 3D LiDAR emits multiple beams across vertical angles simultaneously, producing a full volumetric point cloud. For construction mapping, this means 3D LiDAR captures overhangs, stacked materials, and irregular surfaces in a single pass, while a 2D scanner requires multiple repositions to assemble the same geometry, introducing registration errors. Outsight's infrastructure-based approach builds on this volumetric depth by processing 3D point clouds in real time through its SHIFT platform, enabling continuous spatial awareness across complex sites without relying on sensors mounted on the moving equipment or personnel being tracked.

• How does LiDAR-based quality control compare to photogrammetry on construction sites?

  Photogrammetry derives 3D measurements from overlapping photographs, a process that requires controlled lighting, extensive image capture, and compute-heavy post-processing. LiDAR point clouds are acquired directly as metric 3D data and can be registered against a CAD model using three reference points without the intermediate reconstruction step. The result is faster deviation detection and lower sensitivity to lighting or surface texture, which are frequent sources of error in photo-based QC workflows. Outsight's infrastructure-based approach to LiDAR processing, demonstrated in industrial deployments at BMW and other manufacturing facilities, shows how sub-50ms real-time pipelines can extend these advantages beyond static scanning into continuous, live monitoring of complex operational environments.

• Can the same LiDAR hardware used for safety zones also track material stockpile volumes over time?

  Generally yes, depending on sensor placement and coverage area. A fixed infrastructure-mounted LiDAR continuously captures the 3D geometry of everything in its field of view. The same point cloud that feeds a real-time collision alert can also be sampled at lower frequency to compute stockpile volume changes over days or weeks. This dual-use approach is central to how Outsight's SHIFT platform processes infrastructure-based LiDAR data: a single sensor network can serve simultaneous workloads, such as safety zone monitoring and periodic volumetric measurement, without requiring separate hardware deployments. Running both workloads from shared sensor infrastructure reduces total hardware cost and avoids redundant cabling and network runs.

• How does construction site LiDAR relate to industrial robot safety systems in factories?

  Both applications share the same underlying principle: LiDAR sensors mounted in fixed infrastructure define dynamic safety zones around machines, and the system triggers an alert or stop command when a person enters the zone. In factory settings, this approach is already in production for autonomous mobile robot coordination, as seen in deployments such as those at BMW, where Outsight's infrastructure-based sensing tracks personnel and vehicles in real time without relying on wearables or camera-based identification. On construction sites, the geometry is less predictable and the environment changes daily, so safety zone definitions must be updated as the site evolves, rather than set once at commissioning as in a factory. That continuous re-mapping requirement makes the real-time 3D awareness provided by platforms like the SHIFT platform particularly relevant to construction contexts.

• How much more dangerous is construction than other industries, based on US worker fatality data?

  In the United States, only about 6 percent of workers are employed in the construction industry, yet the sector accounts for over 20 percent of worker fatalities nationwide. Every year, thousands of construction workers are injured as a result of hazardous working conditions. Even when every worker follows safety protocols to the letter, the risk on a job site cannot be completely eliminated. This gap is why Outsight sees 3D LiDAR as a way to save lives with capabilities that were not available before.

• How does a crane-mounted LiDAR safety system adapt its safety zone to the load being lifted?

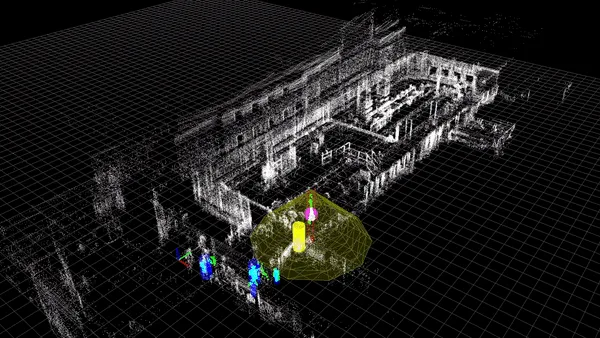

  One of Outsight's clients uses the Outsight Augmented LiDAR Box to process data from a LiDAR sensor installed on a crane, in order to detect dangerous situations and collisions with both machines and workers. The application dynamically adapts the safety zones based on the position of the block and the shape of the load, because a collision can be caused by the load as well as by the crane itself. An alarm is triggered as soon as a person enters the safety zone. Since the sensor perceives the scene in three dimensions, rough terrain does not cause false alarms.

• Can LiDAR collision detection be used on mobile heavy equipment as well as on cranes?

  Yes. Outsight describes a crane application where a LiDAR sensor, processed by the Outsight Augmented LiDAR Box, detects workers and machines entering a dynamic safety zone and raises an alarm. The same principle applies to LiDARs installed on mobile heavy equipment, beyond infrastructure-based machines such as cranes. In both cases the sensor perceives the world in three dimensions, which helps it detect obstacles and hazards that people might miss due to a lack of visual or auditory cues. This makes it a practical tool for reducing fatality rates on job sites.

• What is the difference between using construction site LiDAR data in real time and aggregated over time?

  LiDAR produces accurate, detailed 3D images of a construction site, which are processed and stored as datasets used in two ways. In real time, the information is used instantly, for example to raise an alert following a dangerous event. Aggregated over time, the same information provides statistical measurements that deliver insight, for example to understand in what places and when these kinds of events are happening. Outsight provides a LiDAR-agnostic software solution that makes it easy and fast to employ LiDAR in either mode.

• How long does it take to create a 3D point-cloud map of a construction site with LiDAR preprocessing software?

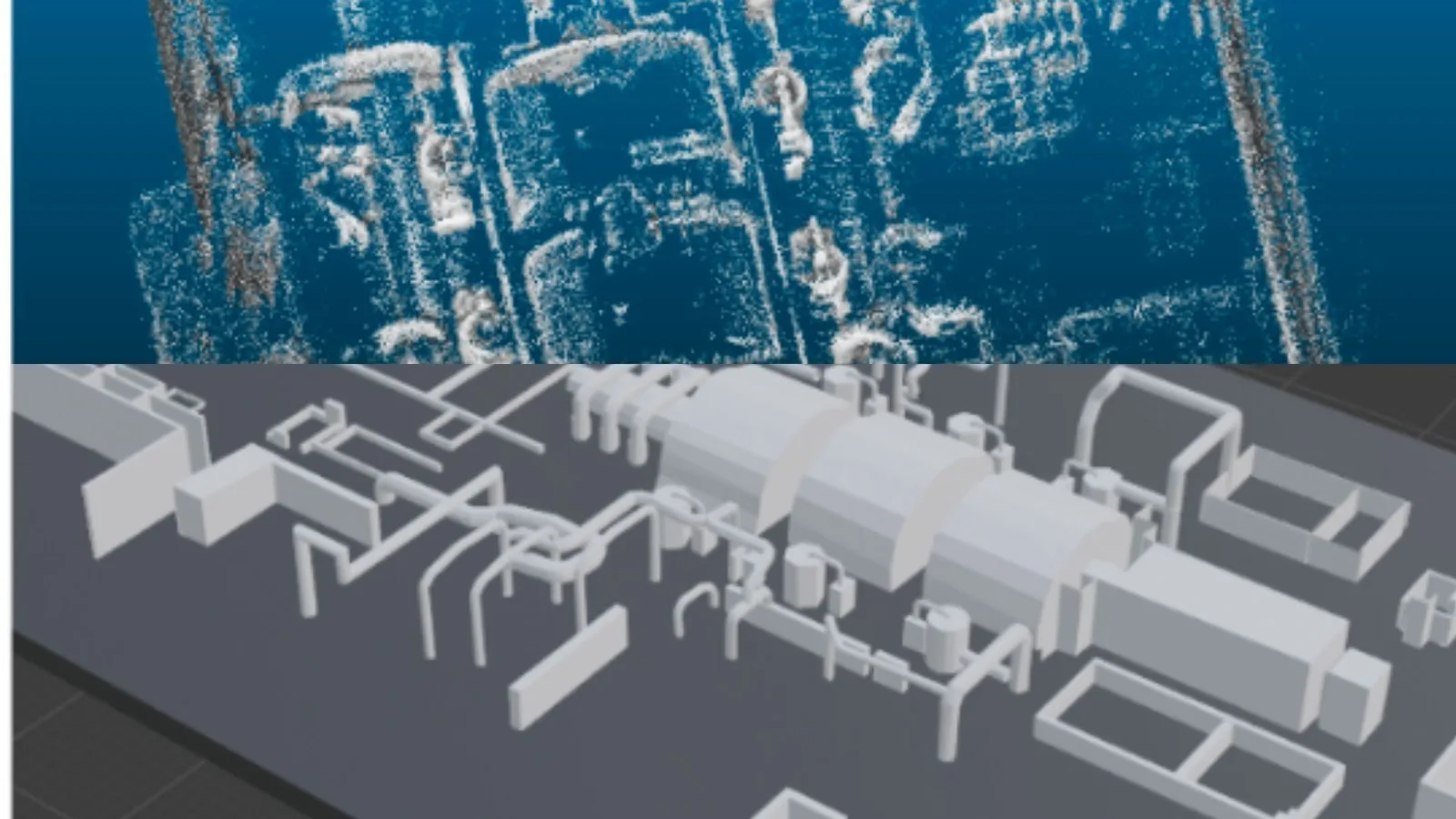

  Using Outsight's LiDAR preprocessing software, you can generate a point-cloud 3D map and obtain a precise view of your site in a matter of minutes. Traditional mapping relied on manual surveying tools such as 2D LiDAR scanners and, more recently, photogrammetry, which tend to be time-consuming and can produce inconsistencies in the mapped data. A 3D LiDAR emits several light beams to gather more comprehensive data about objects. This significantly reduces the time and effort of site mapping and improves the quality of the result, which can also serve as the basis for a Digital Twin.

• How do LiDAR-based project simulations help construction teams anticipate dangerous scenarios?

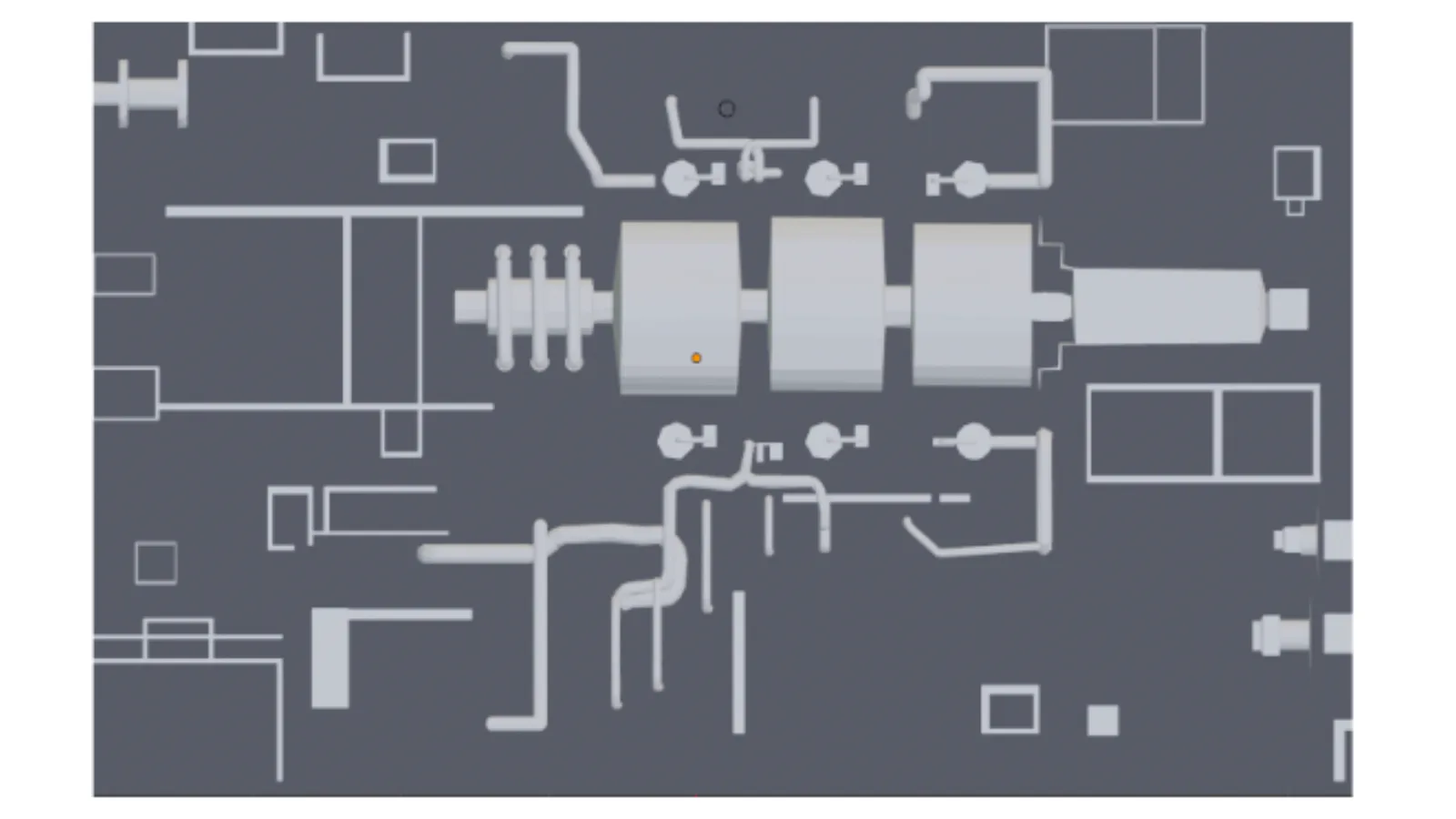

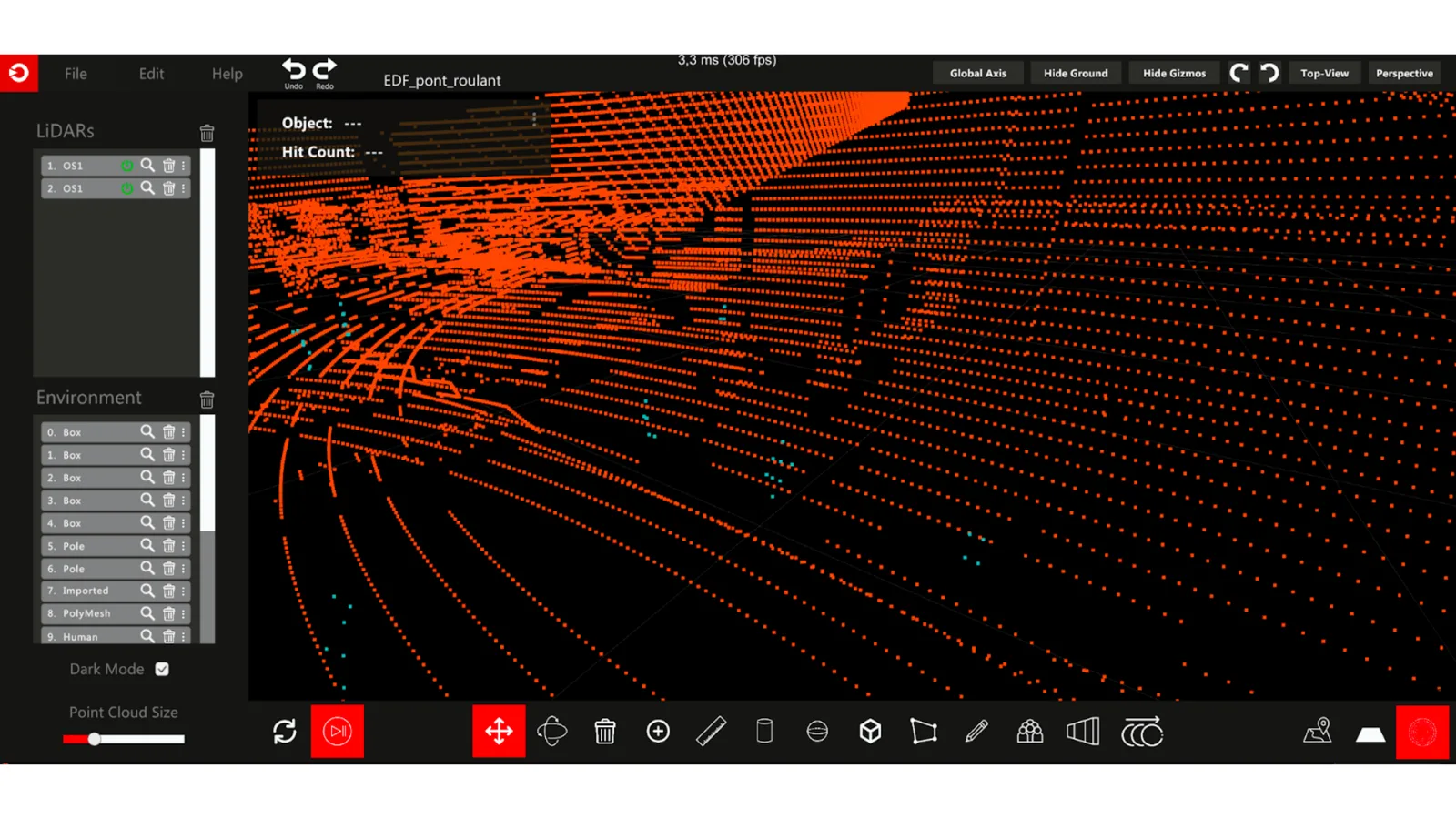

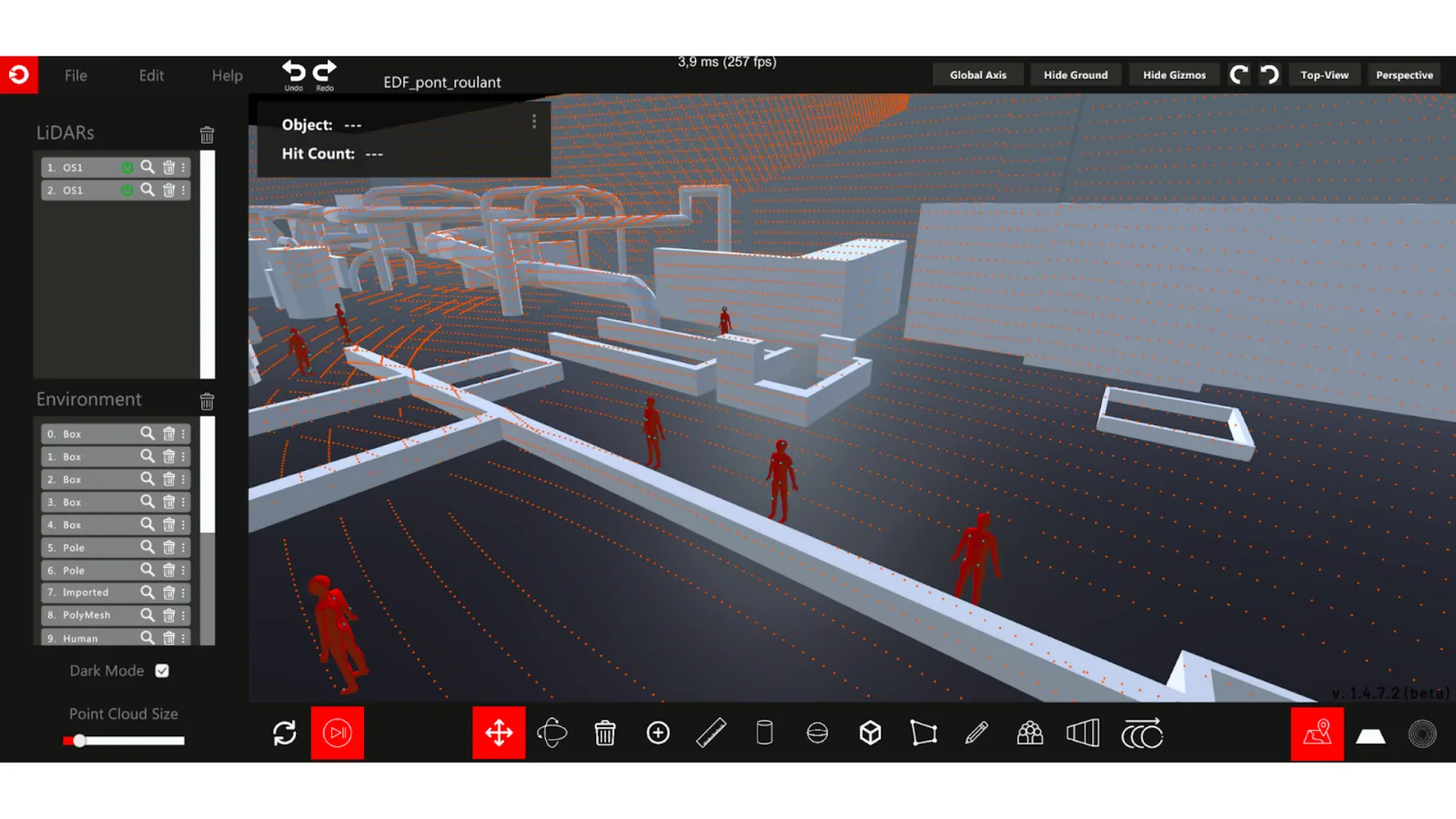

  In a project simulation, 3D LiDAR becomes the starting point for modelling a construction project in its entirety, including how people and machinery move through the site. Project managers get a clearer picture of how the project will look in practice during the development phase. One of Outsight's clients used its simulation tool to create specific scenes and evaluate how well 3D LiDAR systems performed in various settings. This allowed the client to make sure that all potentially dangerous scenarios would be addressed by its safety application.

• How are laser scans matched to 3D CAD models for construction quality control?

  In LiDAR-based quality control, 3D objects on the site are identified with laser scans and then superimposed on the project's 3D CAD models using three matching reference points. Earlier vision-based methods acquired digital photographs on site, connected them to the 3D CAD models and compared the two to identify discrepancies. Traditional paper-based quality control is usually labor intensive and expensive. These techniques are now being replaced by 3D models built from laser scans.

• Does construction site LiDAR work at night or in poor lighting conditions?

  Yes. One of the greatest benefits of LiDAR is its ability to produce highly accurate, detailed 3D images of the surrounding environment in any lighting conditions. On a construction site, this 3D data can be used in real time, for example to raise an alert after a dangerous event, or aggregated over time to understand where and when such events occur. Outsight provides LiDAR-agnostic software that makes it easy and fast to employ LiDAR in any application, including construction safety.

• Is this construction safety LiDAR software tied to a specific sensor brand?

  Outsight provides a LiDAR-agnostic software solution designed to make it easy and fast to employ LiDAR in any application, including construction. Its real-time preprocessing software makes it simpler to develop advanced 3D-based solutions for the construction industry. One of its clients, for example, uses the Outsight Augmented LiDAR Box to process data from a LiDAR sensor installed on a crane. Outsight states its mission as building the easiest and most efficient way to use 3D LiDAR data in any application.

• Why is tracking moving workers and machines a bigger step than using LiDAR for site mapping alone?

  When 3D LiDAR is used for mapping, it improves the precision of the outcome and the ease of a procedure that already existed. When it captures the dynamic part of the site, it unlocks a new application: identifying and tracking dynamic components across a scene in real time. These changes can be slow, such as a stockpile evolving over days, or fast, such as employees and machinery being moved. As a result, project managers obtain a better picture of how the project will look in practice during the development phase.

• How can construction sites prevent accidents between machines and workers?

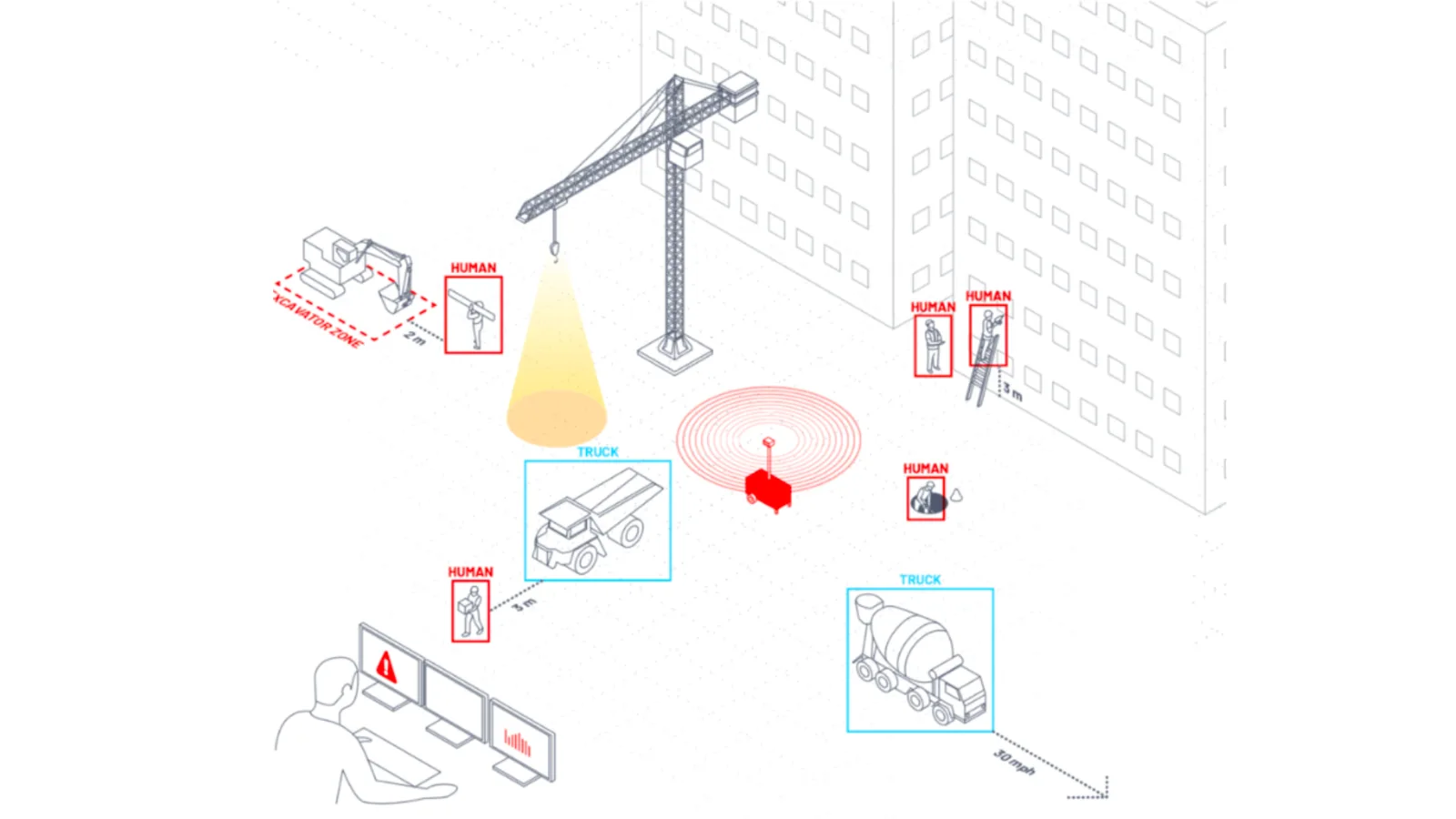

  Accidents on construction sites often happen when heavy machines move near workers outside the operator's field of view. 3D LiDAR can monitor the area around machines and across the site, detect people entering danger zones in real time and alert operators or workers, day and night. It also records events to improve site practices. Outsight's LiDAR software supports such safety applications across construction and industrial environments. Historical data shows where and when dangerous situations occur.
